dfetch Runtime Usage

Risk Context

This report follows the risk-based approach of BSI TR-03183-1 Chapter 5.

Threat model for dfetch. Covers the post-install lifecycle: reading the manifest, fetching dependencies from VCS and archive sources, applying patches, writing vendored files, and generating reports (SBOM, SARIF, check output). The installed dfetch package - produced by the supply chain in tm_supply_chain.py - is the entry point.

Assumptions

Name	Description
Trusted workstation	Developer workstations are trusted at dfetch invocation time. A compromised workstation is outside the scope of this threat model.
TLS delegated to client	TLS certificate validation is delegated to the OS trust store and the git / svn / urllib clients. dfetch does not independently validate certificates.
No persisted secrets	No runtime secrets are persisted to disk by dfetch itself. VCS credentials are managed by the OS keychain, SSH agent, or CI secret store.
Optional integrity hash	The integrity.hash field in the manifest is optional. Archive dependencies without it have no content-authenticity guarantee beyond TLS transport, which is itself absent for plain http:// URLs.
Mutable VCS references	Branch- and tag-pinned Git dependencies are mutable references. Upstream force-pushes silently change what is fetched without triggering a manifest diff.
Manifest under code review	The manifest (dfetch.yaml) is under version control and subject to code review. An adversary with write access to the manifest can redirect fetches to attacker-controlled sources; this threat is addressed at the code-review boundary, not within dfetch itself.
dfetch scope boundary	dfetch is responsible only for its own security posture. The security of fetched third-party source code is the responsibility of the manifest author who selects and pins each dependency.
No HTTPS enforcement	HTTPS enforcement is the responsibility of the manifest author. dfetch accepts http://, svn://, and other non-TLS scheme URLs as written - it does not upgrade or reject them.

Actors

Name	Description
Developer	Writes and reviews dfetch.yaml; selects upstream sources, pins revisions, and optionally enables integrity.hash for archive dependencies. Trusted at workstation invocation time. Responsible for choosing trustworthy upstream sources and keeping pins current.

Boundaries

Name	Description
Local Developer Environment	Developer workstation or local CI runner. Assumed trusted at invocation time. Hosts the manifest (dfetch.yaml), vendor directory, dependency metadata (.dfetch_data.yaml), and patch files.
Internet	All traffic crossing the local/remote boundary. TLS enforcement is the responsibility of the OS and VCS clients; dfetch does not enforce HTTPS on manifest URLs.
Remote VCS Infrastructure	Upstream Git and SVN servers (GitHub, GitLab, Gitea, self-hosted). Not controlled by the dfetch project; content is untrusted until verified.
Archive Content Space	Downloaded archive bytes before extraction and validation. Decompression-bomb and path-traversal checks enforce this boundary during extraction.

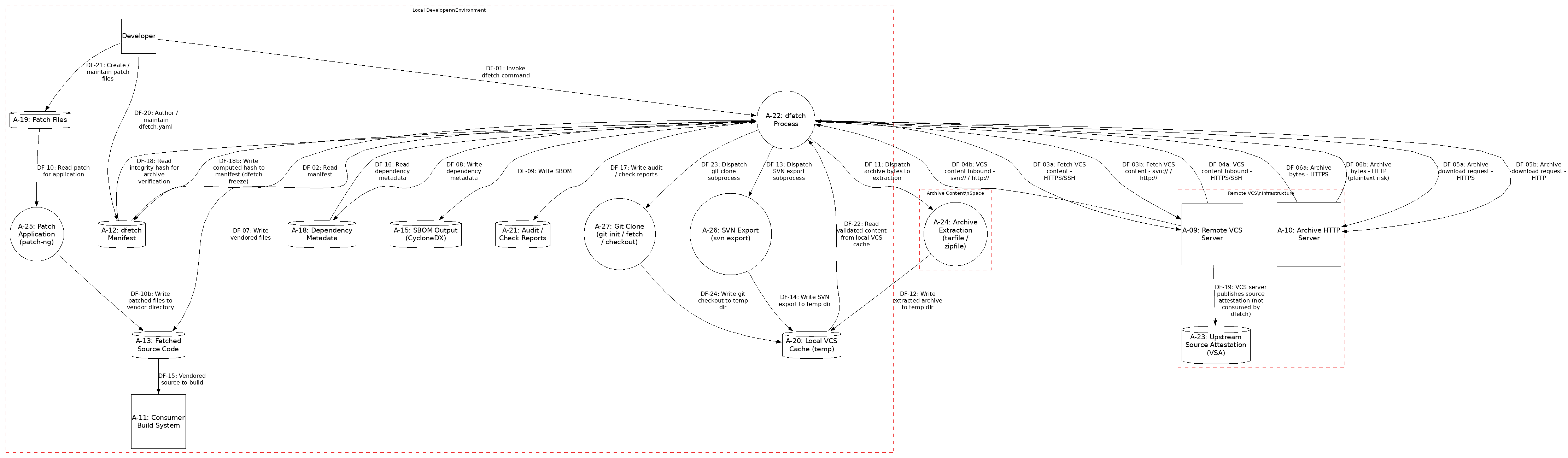

Data Flow Diagram

Sequence Diagram

Asset Identification

Name	Description	Type	C / I / A
A-09: Remote VCS Server	Upstream Git or SVN host: GitHub, GitLab, Gitea, self-hosted Git/SVN. Not controlled by the dfetch project; content is untrusted until verified. The SLSA source level of any upstream is unknown and unverified - dfetch does not check whether the upstream enforces branch protection, mandatory review, or ancestry enforcement, and no VSA is fetched alongside repository content (A-23). Threat postures: a compromised upstream maintainer account (phishing, credential stuffing, or MFA bypass) delivers attacker-controlled commits over an authenticated channel where transport security gives no protection — mitigated only by commit-SHA pinning and review before accepting any update. A network-adjacent attacker (BGP hijack, compromised DNS resolver) can intercept unencrypted traffic (svn://, http://) and inject redirects, but cannot break correctly implemented TLS or SSH.	ExternalEntity	High / High / High
A-10: Archive HTTP Server	HTTP/HTTPS server serving .tar.gz, .tgz, .tar.bz2, .tar.xz, or .zip files. CRITICAL: http:// (non-TLS) URLs are accepted without enforcement of integrity hashes - the integrity.hash field is optional. Threat postures: a network-adjacent attacker (BGP hijack, compromised DNS resolver, or corporate proxy) can intercept http:// traffic and serve a malicious archive transparently — integrity.hash is the only defence for plain-HTTP URLs. A compromised CDN node or registry can serve malicious content under a valid TLS certificate; transport integrity gives no protection — only a verified content hash or signed attestation detects server-side substitution.	ExternalEntity	— / — / —
A-11: Consumer Build System	Build system that compiles fetched source code (A-13). Not controlled by dfetch - it receives untrusted third-party source.	ExternalEntity	— / — / —
A-12: dfetch Manifest	dfetch.yaml - declares all upstream sources (URL/VCS type), version pins (branch / tag / revision / SHA), dst paths, patch references, and optional integrity hashes. Tampering redirects fetches to attacker-controlled sources. RISK: integrity.hash is Optional in schema - archive deps can be declared without any content-authenticity guarantee. Threat postures: a malicious manifest contributor introduces a dfetch.yaml change that redirects a dep to an attacker-controlled URL, points dst: at a sensitive path, or embeds a credential-bearing URL — dfetch is not the control point; code review at the PR boundary is the intended mitigating control. A local-filesystem attacker with write access to the working tree (gained via a compromised dev dependency, malicious post-install hook, or lateral movement) can tamper with .dfetch_data.yaml, patch files, and vendored source after dfetch writes them to disk.	Datastore	Critical / Critical / —
A-13: Fetched Source Code	Third-party source code written to the dst: path after extraction / checkout. Becomes a direct build input for the consuming project. A compromised upstream or MITM can inject malicious code that executes in the consumer’s build system, test runner, or production binary.	Datastore	Critical / Critical / High
A-15: SBOM Output (CycloneDX)	CycloneDX JSON/XML produced by dfetch report -t sbom. Enumerates vendored components with PURL, license, and hash. Falsification hides actual dependencies from downstream CVE scanners. NOTE: this SBOM covers vendored deps only - dfetch itself has a separate machine-readable SBOM published on PyPI (see A-04 in tm_supply_chain.py).	Datastore	High / High / —
A-16: VCS Credentials	SSH private keys, HTTPS Personal Access Tokens, SVN passwords. Used to authenticate to private upstream repositories. dfetch never persists these - managed by OS keychain, SSH agent, or CI secret store.	Data	High / High / High
A-17: Embedded Credential in Remote URL	A VCS or archive URL that encodes a credential in the userinfo component (e.g. https://user:TOKEN@github.com/org/repo.git). dfetch writes remote_url verbatim to .dfetch_data.yaml after each successful fetch. If the URL contains a Personal Access Token or password, that credential is persisted in plaintext and typically committed to VCS, where it becomes readable from every clone and CI checkout indefinitely.	Data	— / — / —
A-18: Dependency Metadata	.dfetch_data.yaml files written after each successful fetch. Contains: remote_url, revision/branch/tag, hash, last-fetch timestamp. Read by dfetch check to detect outdated deps. Tampering can suppress update notifications - an attacker who controls the local filesystem can silently mask a compromised vendored dep.	Datastore	High / High / —
A-19: Patch Files	Unified-diff .patch files referenced by patch: in dfetch.yaml. Applied by patch-ng after fetch. dfetch validates that each patch file path resides within the project directory (subproject.py), but does not check where the patch contents will write — a malicious patch can still write to arbitrary destination paths within reach of patch-ng. Patch files are not integrity-verified (no hash in manifest schema).	Datastore	High / High / —
A-20: Local VCS Cache (temp)	Temporary directory used during git-clone / svn-checkout / archive extraction. Deleted after content is copied to dst. Path-traversal attacks targeting this space are mitigated by check_no_path_traversal() and post-extraction symlink walks.	Datastore	High / High / High
A-21: Audit / Check Reports	SARIF, Jenkins warnings-ng, Code Climate JSON produced by dfetch check. Falsification hides vulnerabilities from downstream security dashboards.	Datastore	High / High / —
A-22: dfetch Process	Python CLI entry point dispatching to: update, check, diff, add, remove, update-patch, format-patch, freeze, import, init, report, validate, environment. Invokes Git and SVN as subprocesses (shell=False, list args). Extracts archives with decompression-bomb limits and path-traversal checks.	Process	High / High / High
A-23: Upstream Source Attestation (VSA)	SLSA Source Provenance Attestation or Verification Summary Attestation (VSA) that an upstream VCS host can publish for a specific revision, attesting that the source-level controls required by a given SLSA source level - branch protection, mandatory review, and ancestry enforcement - were applied. CRITICAL: dfetch has no mechanism to request or verify source-level attestations and the manifest schema has no field to declare an expected SLSA source level. In the absence of a VSA the consumer cannot cryptographically distinguish a well-governed upstream from one with no controls at all.	Datastore	High / High / —
A-24: Archive Extraction (tarfile / zipfile)	Decompresses and extracts TAR (.tar.gz/.tgz/.tar.bz2/.tar.xz) and ZIP archives to a temporary directory. Pre-extraction checks validate decompression-bomb limits, path traversal, symlinks, hardlinks, device files, and FIFOs. On Python ≥ 3.11.4: filter='tar' strips setuid/setgid bits during extraction. On Python < 3.11.4: extractall() is called without a filter - setuid, setgid, and sticky bits from TAR member headers are preserved on the extracted files, allowing a malicious archive to introduce setuid-root binaries into the vendor directory.	Process	High / High / High
A-25: Patch Application (patch-ng)	Invokes patch-ng to apply unified-diff files from patch: references in the manifest. dfetch validates that each patch file resides within the project directory (subproject.py), but does not independently sanitise the destination paths inside the patch file before handing off to the library. Path safety for patch application targets is delegated to patch-ng’s internal implementation.	Process	High / High / High
A-26: SVN Export (svn export)	Runs svn export --non-interactive --force to check out SVN dependencies. The --ignore-externals flag is NOT passed. SVN repositories with svn:externals properties will trigger additional fetches from third-party SVN servers not declared in dfetch.yaml. After export, SvnSubProject._fetch_externals() queries the externals list and records each one as a Dependency with source_type='svn-external' — mirroring the metadata tracking that git submodules receive. These fetches bypass dfetch’s manifest controls: no integrity hash and no code review of the external URL (the URL comes from the upstream repository, not from dfetch.yaml).	Process	High / High / High
A-27: Git Clone (git init / fetch / checkout)	Sequence of git init, git remote add origin, git fetch, and git reset --hard FETCH_HEAD (or git checkout) invoked as list-arg subprocesses to check out Git dependencies. Sparse-checkout (core.sparsecheckout) is applied when a src: path is specified. GIT_TERMINAL_PROMPT=0 and BatchMode=yes suppress interactive credential prompts. No commit-signature or tag-signature verification is performed; authenticity relies entirely on transport security (TLS / SSH).	Process	High / High / High

Dataflows

Name	From	To	Protocol
DF-01: Invoke dfetch command	Developer	A-22: dfetch Process
DF-02: Read manifest	A-12: dfetch Manifest	A-22: dfetch Process
DF-03a: Fetch VCS content - HTTPS/SSH	A-22: dfetch Process	A-09: Remote VCS Server	HTTPS / SSH
DF-03b: Fetch VCS content - svn:// / http://	A-22: dfetch Process	A-09: Remote VCS Server	HTTP / SVN
DF-04a: VCS content inbound - HTTPS/SSH	A-09: Remote VCS Server	A-22: dfetch Process	HTTPS / SSH
DF-04b: VCS content inbound - svn:// / http://	A-09: Remote VCS Server	A-22: dfetch Process	HTTP / SVN
DF-05a: Archive download request - HTTPS	A-22: dfetch Process	A-10: Archive HTTP Server	HTTPS
DF-05b: Archive download request - HTTP	A-22: dfetch Process	A-10: Archive HTTP Server	HTTP
DF-06a: Archive bytes - HTTPS	A-10: Archive HTTP Server	A-22: dfetch Process	HTTPS
DF-06b: Archive bytes - HTTP (plaintext risk)	A-10: Archive HTTP Server	A-22: dfetch Process	HTTP
DF-07: Write vendored files	A-22: dfetch Process	A-13: Fetched Source Code
DF-08: Write dependency metadata	A-22: dfetch Process	A-18: Dependency Metadata
DF-09: Write SBOM	A-22: dfetch Process	A-15: SBOM Output (CycloneDX)
DF-16: Read dependency metadata	A-18: Dependency Metadata	A-22: dfetch Process
DF-10: Read patch for application	A-19: Patch Files	A-25: Patch Application (patch-ng)
DF-10b: Write patched files to vendor directory	A-25: Patch Application (patch-ng)	A-13: Fetched Source Code
DF-15: Vendored source to build	A-13: Fetched Source Code	A-11: Consumer Build System
DF-11: Dispatch archive bytes to extraction	A-22: dfetch Process	A-24: Archive Extraction (tarfile / zipfile)
DF-12: Write extracted archive to temp dir	A-24: Archive Extraction (tarfile / zipfile)	A-20: Local VCS Cache (temp)
DF-13: Dispatch SVN export subprocess	A-22: dfetch Process	A-26: SVN Export (svn export)
DF-14: Write SVN export to temp dir	A-26: SVN Export (svn export)	A-20: Local VCS Cache (temp)
DF-23: Dispatch git clone subprocess	A-22: dfetch Process	A-27: Git Clone (git init / fetch / checkout)
DF-24: Write git checkout to temp dir	A-27: Git Clone (git init / fetch / checkout)	A-20: Local VCS Cache (temp)
DF-17: Write audit / check reports	A-22: dfetch Process	A-21: Audit / Check Reports
DF-22: Read validated content from local VCS cache	A-20: Local VCS Cache (temp)	A-22: dfetch Process
DF-18: Read integrity hash for archive verification	A-12: dfetch Manifest	A-22: dfetch Process
DF-18b: Write computed hash to manifest (dfetch freeze)	A-22: dfetch Process	A-12: dfetch Manifest
DF-20: Author / maintain dfetch.yaml	Developer	A-12: dfetch Manifest
DF-19: VCS server publishes source attestation (not consumed by dfetch)	A-09: Remote VCS Server	A-23: Upstream Source Attestation (VSA)
DF-21: Create / maintain patch files	Developer	A-19: Patch Files

Threats

ID	Description	Target	Analysis	Controls / Notes
DFT-01	Unencrypted transport interception (MITM)	DF-06b: Archive bytes - HTTP (plaintext risk)	Sev: 🟠H Risk: 🔴C STRIDE: T S Status: Mitigate	C-005 mitigates only when integrity.hash is present; plain HTTP without a hash has no transport or content protection.
DFT-02	Supply-chain content substitution via server-side compromise	DF-04a: VCS content inbound - HTTPS/SSH	Sev: 🟠H Risk: 🟠H STRIDE: T S Status: Mitigate	Archives: C-005 mitigates when hash is present. Git/SVN refs have no equivalent integrity mechanism; pinning to a commit SHA is the strongest available mitigation.
DFT-03	Path traversal in archive or patch extraction	A-25: Patch Application (patch-ng)	Sev: 🔴VH Risk: 🟠H STRIDE: T E Status: Mitigate	Archive and VCS extraction mitigated by C-001, C-003, C-004. Patch files carry no integrity hash and are not independently verified.
DFT-04	Sensitive datastore write without content integrity verification	A-13: Fetched Source Code	Sev: 🟠H Risk: 🟠H STRIDE: T Status: Mitigate	C-008
DFT-05	Mutable VCS reference enables silent content substitution	DF-04a: VCS content inbound - HTTPS/SSH	Sev: 🟡M Risk: 🟠H STRIDE: T S Status: Mitigate	C-005 mitigates archive deps when hash present. Git/SVN: no integrity mechanism; pinning to an immutable commit SHA is recommended but not enforced by dfetch.
DFT-07	CI/CD secret exfiltration via supply-chain attack on build environment	A-25: Patch Application (patch-ng)	Sev: 🟠H Risk: 🟠H STRIDE: I Status: Accept	dfetch uses shell=False throughout (C-007); residual supply-chain compromise of dfetch itself is the supply-chain model’s scope. Accepted based on the dfetch scope boundary assumption: dfetch is responsible only for its own security posture; a compromised dfetch installation is addressed by the supply-chain threat model, not the runtime-usage model.
DFT-08	Tampered secondary artifact suppresses or bypasses security checks	A-18: Dependency Metadata	Sev: 🟡M Risk: 🟠H STRIDE: T Status: Mitigate	Manifest schema (C-008) validates all string fields; patch files carry no integrity hash and are not verified before application.
DFT-09	Archive decompression bomb causes resource exhaustion	A-24: Archive Extraction (tarfile / zipfile)	Sev: 🟡M Risk: 🟡M STRIDE: D Status: Mitigate	C-002
DFT-10	Build or development dependency substitution via compromised registry	A-22: dfetch Process	Sev: 🟠H Risk: 🟠H STRIDE: T Status: Accept	dfetch’s runtime dependency supply-chain is the supply-chain model’s scope; use a verified dfetch installation. Accepted based on the dfetch scope boundary assumption: dfetch is responsible only for its own security posture; the integrity of dfetch’s own runtime dependencies is out of scope for this usage model and is addressed by the supply-chain threat model.
DFT-12	SSRF via unvalidated HTTP redirect chain	DF-05a: Archive download request - HTTPS	Sev: 🟠H Risk: 🟠H STRIDE: I Status: Accept	Archive downloads follow up to 10 HTTP redirects without validating the destination against RFC-1918, loopback, or link-local ranges; SSRF to internal metadata endpoints is possible. Accepted based on the No HTTPS enforcement assumption: HTTPS enforcement and safe URL selection are the manifest author’s responsibility; the manifest is under code review, and URLs that could expose internal services should be rejected at the review boundary.
DFT-13	Credential embedded in source URL persisted to unencrypted metadata	A-18: Dependency Metadata	Sev: 🟠H Risk: 🟡M STRIDE: I Status: Accept	dfetch persists the configured URL to .dfetch_data.yaml; credentials embedded in URLs appear in that file in plaintext. Accepted based on the No persisted secrets assumption: no runtime secrets are persisted to disk by dfetch itself — VCS credentials are expected to be managed by the OS keychain, SSH agent, or CI secret store rather than embedded in source URLs.
DFT-14	Dangerous file permission bits preserved during archive extraction	A-24: Archive Extraction (tarfile / zipfile)	Sev: 🟠H Risk: 🟡M STRIDE: T Status: Accept	dfetch does not strip executable or setuid/setgid bits from extracted archive members; on Python < 3.11.4, TAR extraction preserves such bits. dfetch supports Python ≥ 3.10 (requires-python = '>=3.10' in pyproject.toml), so this is a live concern for users on Python 3.10.x or Python 3.11.0–3.11.3. Mitigation: pin dfetch to archives from trusted, reviewed sources only, or run on Python ≥ 3.11.4 where the TAR extraction filter strips these bits. Accepted based on the Trusted workstation assumption: developer workstations are trusted at dfetch invocation time; setuid bits on extracted files in the vendor directory are a local concern within that trusted environment, and a compromised workstation is outside the scope of this model.
DFT-15	VCS externals / submodules trigger undeclared third-party fetches	A-27: Git Clone (git init / fetch / checkout)	Sev: 🟠H Risk: 🟠H STRIDE: T Status: Accept	Git submodules are followed: git submodule update --init --recursive is called unconditionally during every Git fetch (dfetch/vcs/git.py), and each submodule is recorded as a Dependency with source_type='git-submodule' (gitsubproject.py). SVN export is invoked without --ignore-externals; each svn:externals entry triggers an additional fetch, and SvnSubProject._fetch_externals() records it as a Dependency with source_type='svn-external' (svnsubproject.py). Both behaviours are intentional — dfetch vendors submodule and external trees and surfaces them in metadata — but the fetched URLs come from the upstream repository (.gitmodules / svn:externals), not from dfetch.yaml, and therefore bypass manifest code review and carry no integrity hash. Suppressing these fetches (e.g. passing --no-recurse-submodules or --ignore-externals) would be a design change that removes intentional vendoring behaviour. Accepted based on the Manifest under code review assumption: the choice to vendor an upstream that contains submodules or svn:externals is declared in dfetch.yaml and subject to code review; the decision to trust those nested URLs is made at the manifest-review boundary.
DFT-16	Configured destination path allows writes to security-sensitive project directories	A-22: dfetch Process	Sev: 🔴VH Risk: 🟠H STRIDE: T E Status: Accept	C-001 prevents writes outside the project root; no denylist blocks writes to sensitive within-root paths such as .github/workflows/. Defense-in-depth: CI pipelines should run dfetch update in a step that does not have write access to .github/workflows/ (e.g. by restricting permissions or running in a directory sandbox). Accepted based on the Manifest under code review assumption: the dst: path for every dependency is declared in dfetch.yaml and subject to code review; any change pointing a destination at a sensitive directory would be rejected at the review boundary.
DFT-17	Typosquatting or unverified source identity on an unauthenticated channel	DF-06a: Archive bytes - HTTPS	Sev: 🟠H Risk: 🟡M STRIDE: S Status: Accept	Manifest author responsibility; the manifest is under code review. Accepted based on the Manifest under code review assumption: dfetch.yaml is under version control and subject to code review; an adversary who introduces a typosquatted or unverified URL must do so through a manifest change that passes the review boundary.
DFT-18	Dependency confusion - public registry package shadows private internal package	A-12: dfetch Manifest	Sev: 🟠H Risk: 🟠H STRIDE: T S Status: Accept	Not applicable to dfetch’s fetch-by-explicit-URL model; relevant only if using package-registry shorthand. Accepted based on the dfetch scope boundary assumption: dfetch fetches by explicit URL declared in the manifest rather than by package name resolved against a registry; dependency confusion via registry namespace shadowing cannot occur within dfetch’s fetch model.
DFT-19	Malicious upstream update or intentional maintainer sabotage (protestware)	A-13: Fetched Source Code	Sev: 🔴VH Risk: 🟠H STRIDE: T Status: Accept	Upstream maintainer trust; pinning to an immutable commit SHA is the strongest available mitigation but is not enforced by dfetch. Accepted based on the dfetch scope boundary assumption: the security of fetched third-party source code is the responsibility of the manifest author who selects and pins each dependency; intentional maintainer sabotage of an upstream is outside dfetch’s control.
DFT-20	Abandoned package namespace reclaimed by malicious actor	A-12: dfetch Manifest	Sev: 🟠H Risk: 🟡M STRIDE: S T Status: Accept	Not applicable to direct-URL fetches; relevant only if using Git-hosting shorthand with inferred registry lookup. Accepted based on the dfetch scope boundary assumption: dfetch fetches by explicit URL declared in the manifest rather than resolving package names against a registry; abandoned-namespace reclaim attacks require a registry lookup step that does not exist in dfetch’s fetch model.
DFT-21	Unsigned or forged VCS tag accepted as a trusted version pin	DF-04a: VCS content inbound - HTTPS/SSH	Sev: 🟠H Risk: 🟡M STRIDE: S T Status: Accept	dfetch does not verify VCS tag signatures; pinning to an immutable commit SHA is recommended. Accepted based on the Mutable VCS references assumption: branch- and tag-pinned Git dependencies are mutable references; upstream force-pushes can silently change the commit a tag resolves to without triggering a manifest diff, and tag-signature verification is not enforced by dfetch.
DFT-22	Vendored content contains submodule or nested external reference triggering undeclared fetch	A-13: Fetched Source Code	Sev: 🟡M Risk: 🟡M STRIDE: T Status: Accept	dfetch does not parse or execute embedded build manifests (CMakeLists.txt, package.json, etc.); undeclared fetches via build-system externals cannot occur. However, Git dependencies with submodules and SVN dependencies with svn:externals do trigger undeclared fetches — see DFT-15 for details and mitigations. Accepted based on the dfetch scope boundary assumption: the security of fetched third-party source code and any nested dependencies it carries is the responsibility of the manifest author who selects and pins each dependency.
DFT-23	Replay or freeze attack delivers stale content to suppress security updates	DF-06a: Archive bytes - HTTPS	Sev: 🟡M Risk: 🟡M STRIDE: T Status: Accept	No freshness check; dfetch check detects version drift but does not enforce a minimum version or reject stale content. Accepted based on the Mutable VCS references assumption: branch- and tag-pinned dependencies are mutable references whose content can be changed by upstream force-pushes; stale-content delivery is an acknowledged consequence of using mutable pins without a freshness enforcement mechanism.
DFT-24	Local dependency cache or metadata store poisoned to suppress integrity alerts	A-18: Dependency Metadata	Sev: 🟠H Risk: 🟡M STRIDE: T Status: Accept	.dfetch_data.yaml metadata is not integrity-protected; tampering could suppress update notifications from dfetch check. Accepted based on the Trusted workstation assumption: developer workstations are trusted at dfetch invocation time; local filesystem write access sufficient to tamper with .dfetch_data.yaml implies a compromised workstation, which is outside the scope of this model.
DFT-25	Forged or unverifiable provenance attestation conceals malicious build output	A-15: SBOM Output (CycloneDX)	Sev: 🟠H Risk: 🟠H STRIDE: S T R Status: Accept	dfetch does not verify upstream SLSA provenance of fetched sources; provenance verification is the consumer’s responsibility. Accepted based on the dfetch scope boundary assumption: the security of fetched third-party source code is the responsibility of the manifest author who selects and pins each dependency; upstream provenance attestation is outside dfetch’s own security posture.
DFT-26	Protocol or transport downgrade forces connection over insecure channel	A-27: Git Clone (git init / fetch / checkout)	Sev: 🟠H Risk: 🟠H STRIDE: T I Status: Mitigate	C-009 emits a visible warning immediately before the VCS command when a plaintext scheme (http://, git://, svn://) is detected, with credentials redacted and https:// / svn+ssh:// recommended. Detection only — dfetch does not reject or upgrade plaintext URLs; scheme selection remains the manifest author’s responsibility.
DFT-28	CI/CD build cache poisoned to silently substitute a malicious compiled artifact	A-20: Local VCS Cache (temp)	Sev: 🟠H Risk: 🟠H STRIDE: T Status: Accept	Build-cache poisoning (SLSA E6) is a CI/CD supply-chain concern that applies to the dfetch build pipeline, not to runtime usage. dfetch does not maintain a persistent compiled artifact cache; fetched source files are written directly to the vendor directory. See the supply-chain threat model for the mitigating control (C-033). Accepted based on the dfetch scope boundary assumption: dfetch is responsible only for its own security posture; the CI/CD build pipeline for dfetch itself is outside the scope of the runtime-usage model.
DFT-30	Weak or deprecated hash algorithm allows collision-based integrity bypass	A-22: dfetch Process	Sev: 🟠H Risk: 🟠H STRIDE: T S Status: Mitigate	C-005, C-034
DFT-31	Upstream source publishes no SLSA Source provenance attestation — consumer cannot verify upstream security controls	DF-04a: VCS content inbound - HTTPS/SSH	Sev: 🟡M Risk: 🟢L STRIDE: R Status: Accept	Upstream repositories are outside dfetch’s control; no mechanism exists to require or verify upstream SLSA source level. Accepted based on the dfetch scope boundary assumption: the security of fetched third-party source code is the responsibility of the manifest author who selects and pins each dependency; verifying upstream governance controls is outside dfetch’s own security posture.
DFT-32	Upstream source enforces no mandatory two-party review — single contributor can introduce changes without independent verification	A-13: Fetched Source Code	Sev: 🟡M Risk: 🟢L STRIDE: T Status: Accept	Upstream repositories are outside dfetch’s control; no mechanism exists to require mandatory two-party review on upstream changes. Accepted based on the dfetch scope boundary assumption: the security of fetched third-party source code is the responsibility of the manifest author who selects and pins each dependency; requiring upstream review policies is outside dfetch’s own security posture.
DFT-33	Upstream default-branch history rewritten — ancestry broken, pinned SHA orphaned or made unreachable	DF-04a: VCS content inbound - HTTPS/SSH	Sev: 🟡M Risk: 🟢L STRIDE: T Status: Accept	Upstream repositories are outside dfetch’s control; dfetch cannot prevent or detect upstream force-pushes. Accepted based on the Mutable VCS references assumption: branch- and tag-pinned Git dependencies are mutable references; upstream force-pushes silently change what is fetched without triggering a manifest diff, and dfetch has no mechanism to verify that a pinned SHA remains reachable after a history rewrite.

Controls

ID	Name	Threats	Description
C-001	Path-traversal prevention	DFT-03	check_no_path_traversal() resolves both the candidate path and the destination root via os.path.realpath (symlink-aware), then rejects any path whose resolved prefix does not start with the resolved root. Applied to every file copy and post-extraction symlink. dfetch/util/util.py
C-002	Decompression-bomb protection	DFT-09	Archives are rejected if the uncompressed size exceeds 500 MB or the member count exceeds 10 000. dfetch/vcs/archive.py
C-003	Archive symlink validation	DFT-03	Absolute and escaping (..) symlink targets are rejected for both TAR and ZIP. A post-extraction walk validates all symlinks against the manifest root. dfetch/vcs/archive.py
C-004	Archive member type checks	DFT-03	TAR and ZIP members of type device file or FIFO are rejected outright. dfetch/vcs/archive.py
C-005	Integrity hash verification	DFT-01, DFT-02, DFT-05, DFT-30	SHA-256, SHA-384, and SHA-512 verified via hmac.compare_digest (constant-time comparison, resistant to timing attacks). Primary defence against content substitution for archive dependencies. Effectiveness is conditional on the hash field being present. dfetch/vcs/integrity_hash.py
C-006	Non-interactive VCS	DFT-06	GIT_TERMINAL_PROMPT=0, BatchMode=yes for Git; --non-interactive for SVN. Credential prompts are suppressed to prevent interactive hijacking in CI. dfetch/vcs/git.py, dfetch/vcs/svn.py
C-007	Subprocess safety	DFT-06	All external commands invoked with shell=False and list-form arguments - no shell-injection vector. dfetch/util/cmdline.py
C-008	Manifest input validation	DFT-04, DFT-08	StrictYAML schema with SAFE_STR = Regex(r"^[^\x00-\x1F\x7F-\x9F]*$") rejects control characters in all string fields. dfetch/manifest/schema.py
C-009	Plaintext transport detection	DFT-26	plaintext_warning() (dfetch/manifest/project.py) inspects the resolved remote URL immediately before each VCS command is issued (inside the check_for_update and update spinners in subproject.py). If the scheme is http://, git://, or svn://, a visible warning is emitted naming the redacted URL (credentials stripped from the userinfo component) and recommending https:// or svn+ssh://. Detection only — dfetch still proceeds with the plaintext connection; the control raises user awareness but does not enforce scheme selection. dfetch/manifest/project.py, dfetch/project/subproject.py
C-034	Hash algorithm allowlist (SHA-256/384/512 only)	DFT-30	integrity_hash.py accepts only sha256:, sha384:, and sha512: prefixes; any other algorithm prefix is rejected at parse time. MD5 and SHA-1 are not accepted. This directly mitigates DFT-30 (SLSA M2: exploit cryptographic hash collisions) by ensuring that integrity hashes, when present, use algorithms with no known practical collision attacks. dfetch/vcs/integrity_hash.py
